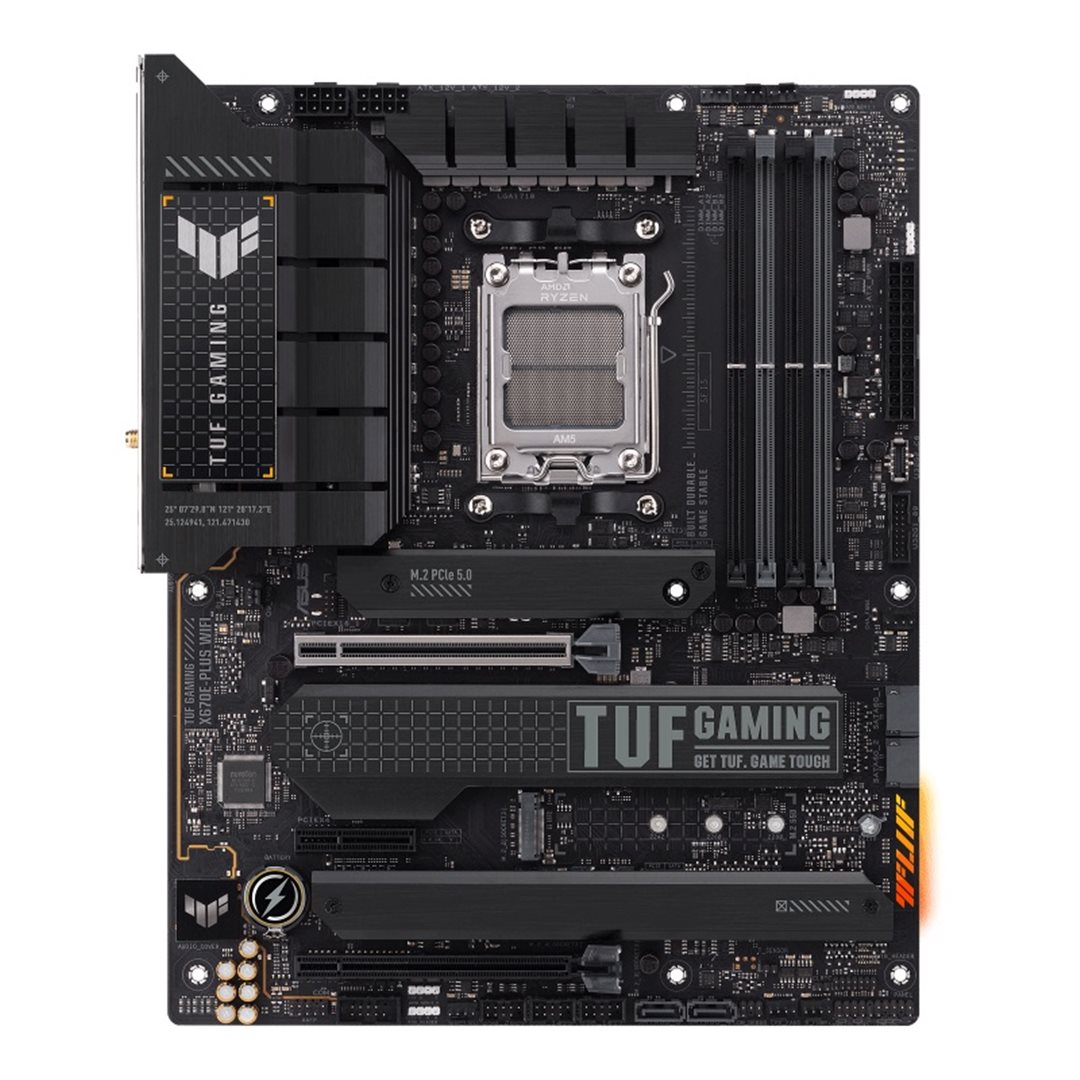

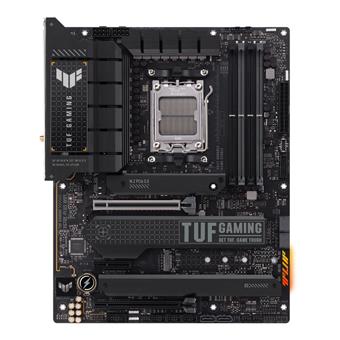

ASUS TUF GAMING X670E-PLUS WIFI/ AM5/ ATX

Chipset: AMD X670

Rozměrový formát: ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pro procesory: AMD Ryzen 7000 Series Desktop Processors
Patice procesoru: AM5

Pozice na paměti: 4 x DIMM,. Dual Channel Memory Architecture
Podpora pro paměti: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC, Non-ECC

Grafická karta: (na základě procesoru)

• 1 x DisplayPort 1.4
• 1 x HDMI port 2.1

Zvuková karta: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• 1 x Realtek 2.5Gb Ethernet
• Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Bluetooth v5.2

Rozšiřující sloty:

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x4 slots

RAID řadič: RAID 0/1/10

SATA: 4 x SATA 6Gb/s ports

M.2: 4 x M.2 slots

USB:

• Interní:
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Externí:
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
• 5 x USB 3.2 Gen 1 ports (5 x Type-A)

Interní porty:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header

Externí porty:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
• 5 x USB 3.2 Gen 1 ports (5 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
